2 Axis(X/Z) CNC Lathe Series
Related Products

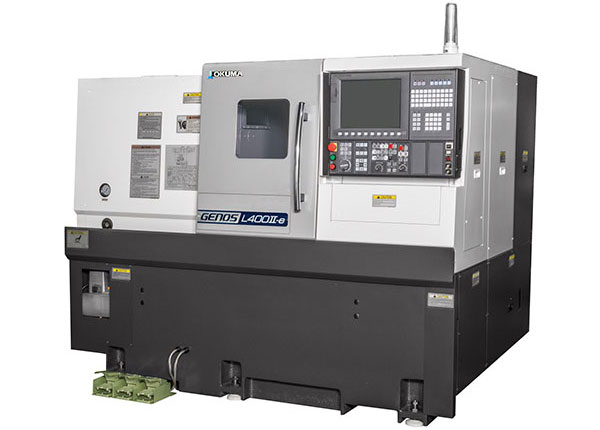

GENOS L400II-e(Lx500)
Specifications
| Spec extension | Model name | GENOS L400II-e(Lx500) |
| Capacity | Max turning dia ( mm ) | Ø390 |
| Max work length ( mm ) | 500 | |
| Travels | X axis (mm) | 220 (195+25) |
| Z axis (mm) | 520 | |
| Spindle | Spindle speed ( min-1 ) | 3,000 |
| Spindle nose | JIS A2-8 | |
| Turret | Turret type | NC V8 |
| No. of tools | 8 | |
| OD tool shank (mm) | 25×25 | |
| ID tool shank dia (mm) | Ø40 | |
| Feedrates | Spindle speed min-1(rpm) | X:25,Z:30 |
| Speed range | 0.001~1,000.000 | |
| Tailstock | Tailstock quill diameter (mm) | Ø90 |
| Tapered bore type | MT.5 (revolving center) | |
| Quill travel (mm) | 100 | |
| Motors | Main spindle(30min/cont) (kW) | VAC 15/11 |
| Coolant pump motor (kW) | 0.8 | |
| Machine size | Height (mm) | 1,791 |
| Floor space (mm) | 2,280×1,860 | |
| Weight (kg) | 4,500 | |
| CNC | OSP-P300LA-e |
