2 Axis(X/Z) CNC Lathe Series
Related Products

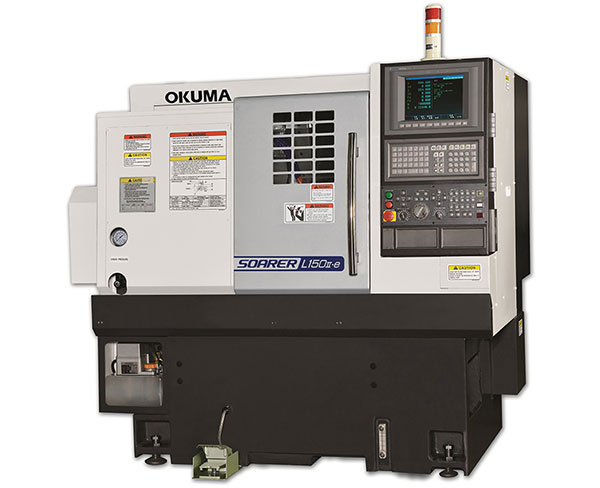

SOARER L150G-II-e
Specifications
| Model name | SOARER L150G-II-e |
| Max turning dia ( mm ) | Ø140 |
| Max work length ( mm ) | 150 |
| Spindle nose | Ø140 |
| Spindle speed ( min-1 ) | 4,200 |
| Travels( X-axis )( mm ) | 300 |
| Travels( Z-axis )( mm ) | 230 |
| Rapid traverse( X-axis )( mm/min ) | 30,000 |
| Rapid traverse( Z-axis )( mm/min ) | 30,000 |
| Turret type | Gang type |
| Standard tool shank height | OD 20 / ID Ø32 |
| Spindle drive motor ( KW ) | 7.5/5.5 |
| Coolant pump (KW) | 0.75 |
| Machine height ( mm ) | 1,560 |
| Floor space( mm ) | 1,755 X 1,445 |
| Weight ( kg ) | 2,650 |
