4 Axis(X/Z/C/Y/W) CNC Lathe Series
Related Products

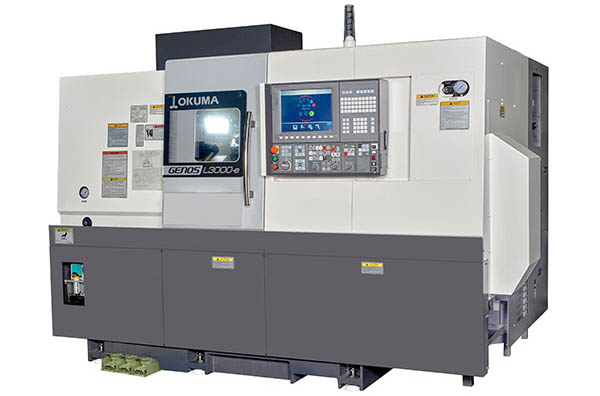

GENOS L3000-e(MWx400)
Specifications
| Spec extension | Model name | GENOS L3000-e(MWx400) |
|
Capacity
|
Max turning dia ( mm ) | Ø300 |
| Max work length ( mm ) | 150 | |
|
Travels
|
X axis (mm) | 236 |
| Z axis (mm) | 460 | |
| W axis (mm) | 520 | |
| C axis | 360° ( 0.001° increments) | |
|
Spindle
|
Spindle speed ( min-1 ) | 3,800 |
| Spindle nose | JIS A2-8 | |
|
Sub Spindle
|
Spindle speed ( min-1 ) | 6,000 |
| Spindle nose | Diameter Ø140 | |
|
Turret
|
Turret type | V12 BMT (Radial) |
| No. of tools | 12 | |
| OD tool shank (mm) | 25×25 | |
| ID tool shank dia (mm) | Ø40 | |
| Milling tool | Spindle speed min-1 (rpm) | 6,000 |
|
Feedrates
|
Rapid traverse(X, Z ) m/min | X:25, Z:30 |
| Rapid traverse(Y) m/min | W:25 | |
| Rapid traverse(C) min-1(rpm) | C:200 | |
| Feedrate(X,Z) mm/rev | 0.001~1,000.000 | |
|
Motors
|
Main spindle(20min/cont) (kW) | VAC 22/15 |
| Sub Spindle (kW) | VAC 7.5/5.5 Built-in | |
| Milling tool spindle (kW) | PREX 5.5/3.7 (2min/cont) | |
|
Machine size
|
Height (mm) | 2,260 |
| Floor space (mm) | 3,035×2,087 | |
| Weight (kg) | 5,500 | |
| CNC | OSP-P300LA-e |
