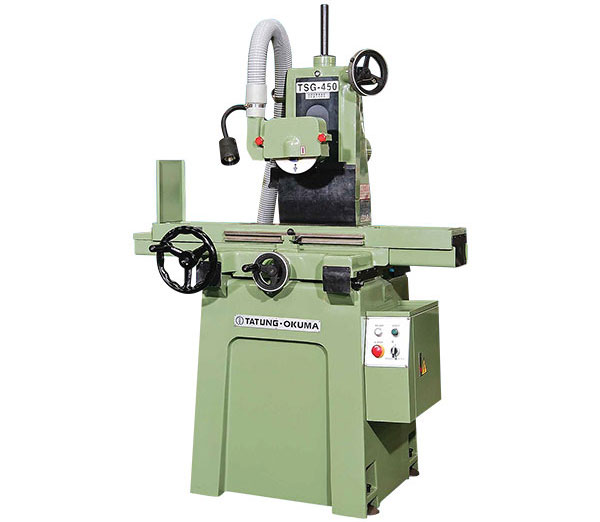

TSG-450
Specifications
| The maximum grinding length |
470mm
|
10.50″
|
|
| The maximum grinding width |
160mm
|
6.30″
|
|
| Distance from center of grinding wheel to workingsurface |
400mm
|
15.75″
|
|
| Size of grinding wheel ( O.D. x Thickness x Bore ) |
180x13x31.75mm
|
7.1×0.51×1.25″
|
|
| Speed of grinding wheel ( 60HZ ) |
3600
|
||
| Feeding of hand wheel on each revolution |
Left and Right movement ofworking stand
|
100mm
|
4″
|
|
Left and Right movement of saddle
|
5mm
|
0.2″
|
|
|
Up and down movement of grinding wheel
|
1mm
|
0.04″
|
|
| Motor of grinding wheel |
0.75Kw2p
|
||
| Motor for dust collection |
0.4Kw2p
|
||
| Dimension of machine ( LxWxH ) ( mm ) |
1,400x920x1850
|
55.120×36.22×72.83″
|
|
| Weight of machine ( Approx ) |
690Kgf
|
1,518Lbs
|
|
