Specifications
| Spec extension | Model name |

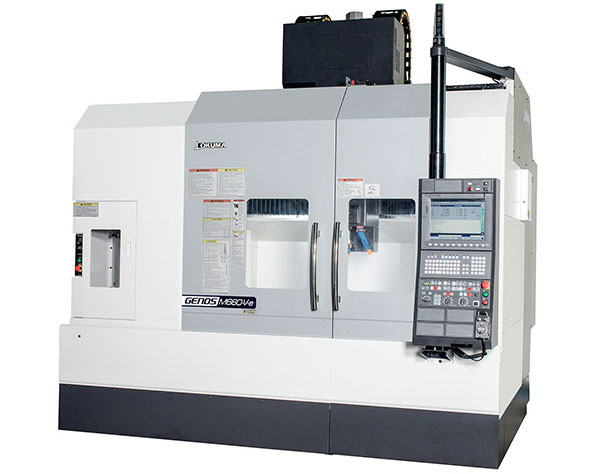

GENOS M660-V-e
|
|
Travels
|
X-axis (ram saddle R/L) mm | 1,500 |
| Y-axis (table B/F) mm | 660 | |
| Z-axis (spindle U/D) mm | 660 | |
| Table top to spindle nose mm | 150~810 | |
|
Table
|
Max work dimension mm | 1,530 x 660 |
| Max load capacity kg | 1,500 | |
|
Spindle
|
Spindle speed min-1(rpm) |
8,000 (12,000, 15,000)
|
| Tapered bore | 7/24 錐度 No.40 | |
|
Feedrate
|
Rapid traverse(X,Y,Z) m/min | X.Y:40 , Z:32 |
| Cutting feedrate(X,Y,Z) m/min | X.Y.Z:32 | |
|
Motors
|
Spindle (10分/連續) kW | 11/7.5 (22/18.5) |
| Feed axes(X.Y.Z) kW | X.Y.Z:4.4 | |
|
ATC
|
Tool shank | MAS BT40 |
| Pull stud | MAS 2 | |
| Tool capacity tool | 20 (32,48) | |
|
Machine size
|
Height mm | 3,295 |
| Floor space mm | 3,035 x 3,235 | |
| Weight kg | 11,000 | |
| CNC | OSP-P300MA-e |
( ) Optional
