2 Axis(X/Z) CNC Lathe Series

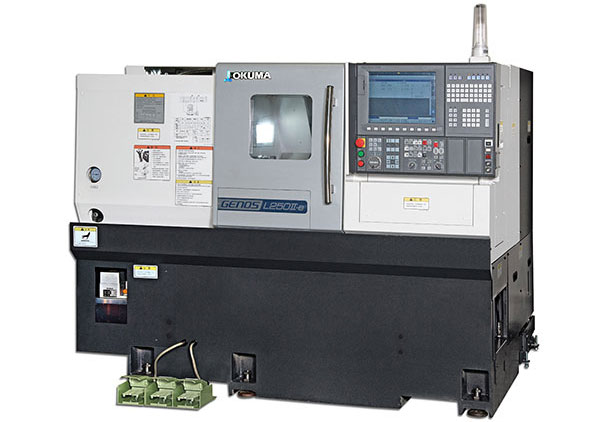

GENOS L250II-e(Lx500)

Features Contact Us
Spec extension Model name GENOS L250II-e(Lx500)
Capacity
 Max turning dia ( mm ) Ø280
Max work length ( mm ) 500
Travels
 X axis (mm) 160 ( 140+20 )
Z axis (mm) 520
Spindle
 Spindle speed ( min-1 ) 4,500
Spindle nose JIS A2-6
Turret
 Turret type NC V8
No. of tools 8
OD tool shank (mm) 25×25
ID tool shank dia (mm) Ø40
Feedrates
 Spindle speed min-1(rpm) X:25 , Z:30
Speed range 0.001~1,000.000
Tailstock
 Tailstock quill diameter (mm) Ø90
Tapered bore type MT.5 (revolving center)
Quill travel (mm) 100
Motors
 Main spindle(30min/cont) (kW) VAC11/7.5
Coolant pump motor (kW) 0.8
Machine size
 Height (mm) 1,619
Floor space (mm) 2,076×1,832
Weight (kg) 3,800
CNC OSP-P300LA-e
