【Lathe Features】

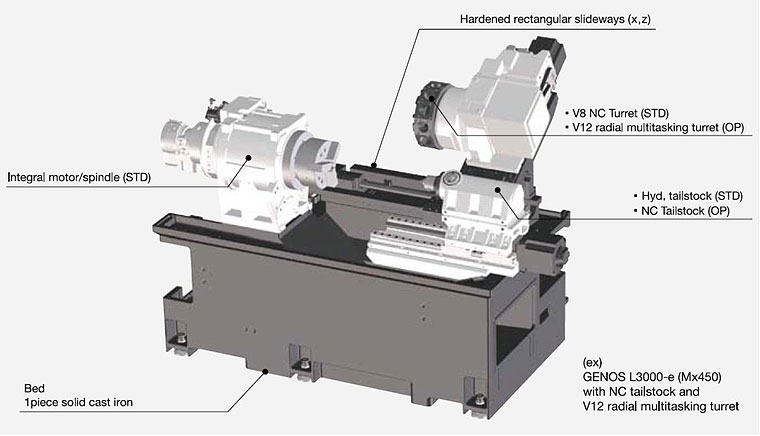

Basic structure
Turret
- V8, V12 (option)

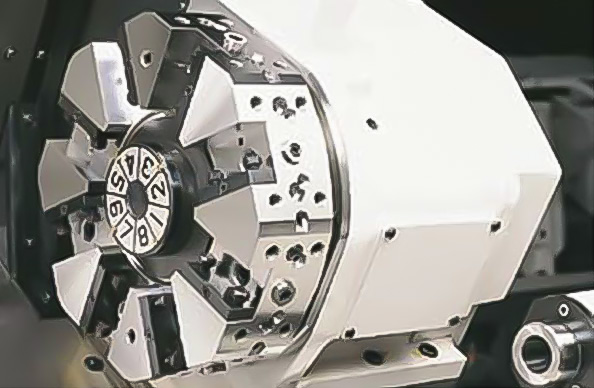

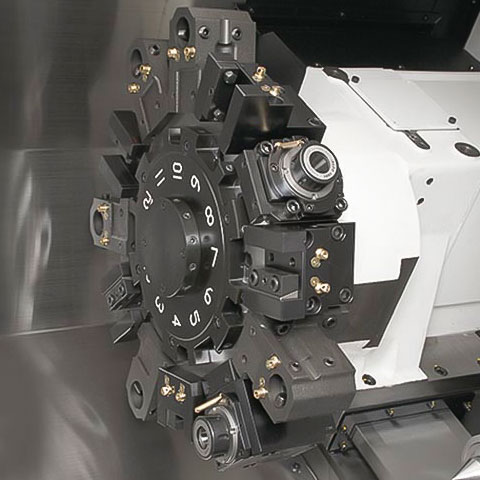

NC Turret
Compact turret with a servo motor drive and 3-piece coupling clutch.
Milling tools can be attached to all locations on turrets with milling specifications. With a spindle indexing command of 0.001°, high accuracy milling can be done at any angle. Two types of multitasking turrets, VDI and radial, are available on the GENOS L1000 series.

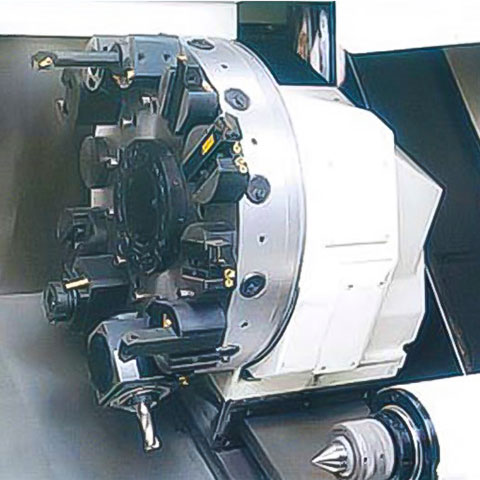

- V12 VDI turret
- V12 BMT turret (option)

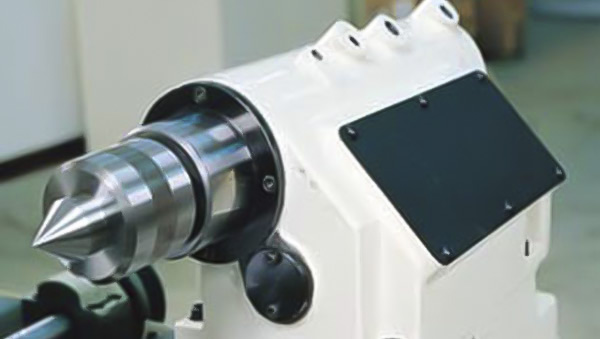

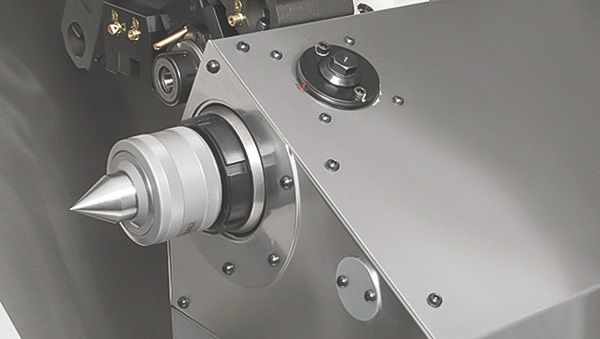

Tailstock
- MT NO.5
Rugged tailstock with Ø90 mm quill.
| GENOS L2000-e | GENOS L3000-e | |
| Tailstock thrust | 1.0-2.0 kN | 1.0-5.0 kN |
| Rapid traverse | 12 m/min | |
| Approach | 10 m/min | |
| Retract | 12 m/min | |

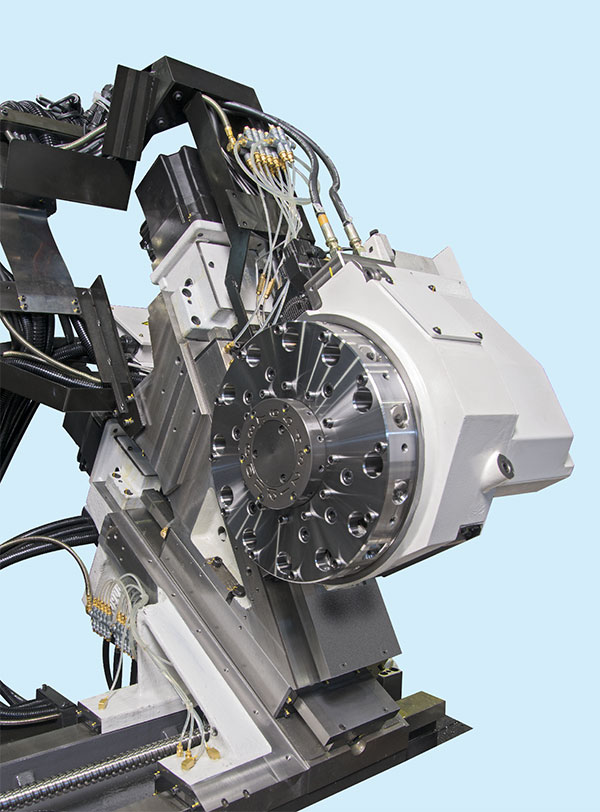

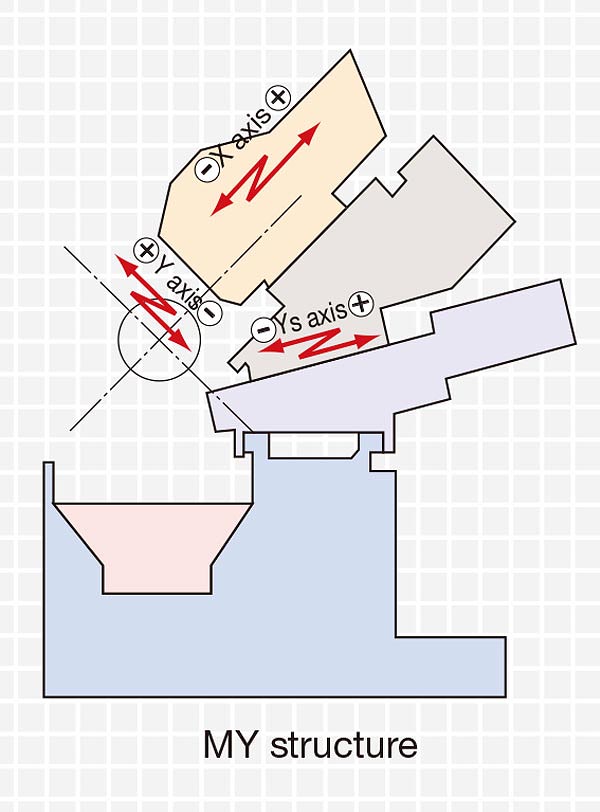

Y-axis functions
- Turret : V12,VDI quick-change tooling system
- A variety of milling operations can be accommodated with high-accuracy, widerange Y-axis travel using a double slide system.
- Achieves complete multitasking with a single chucking.
Travels
- GENOS L2000-e(MYx380) : 80mm(+30 to -50)
- GENOS L3000-e(MYx400,MYx1000) : 100mm(+50 to -50)

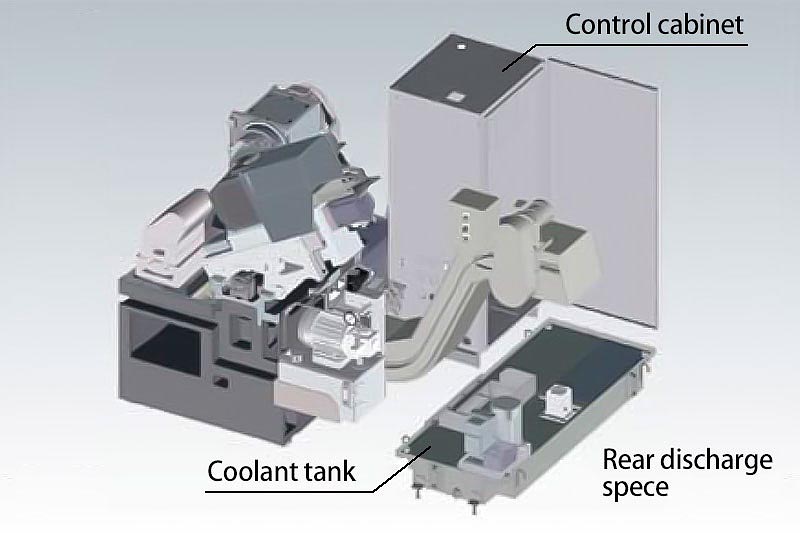

Simplified coolant tank maintenance
- The coolant tank can be separated away from the machine for easier cleaning.
- The tank and the control cabinet share the same maintenance space to minimize the machine footprint.
