【OSP Controls】
The Next-Generation intelligent CNC
In the shop floor production instructions, setup information, machining and utilization, machine maintenance information and more.
suite apps
Actual Load, MacMan Monitor, Total Data etc.

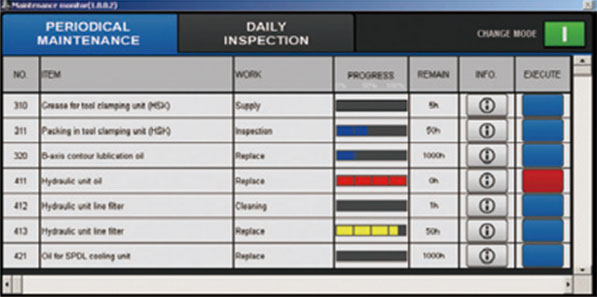

Maintenance Monitor that displays daily and regular check items

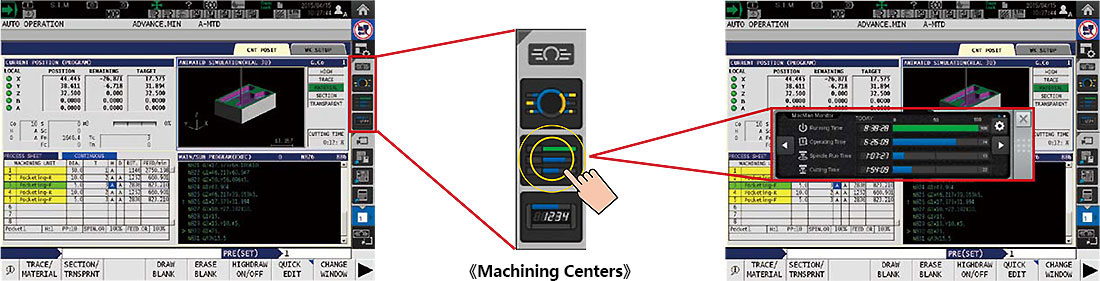

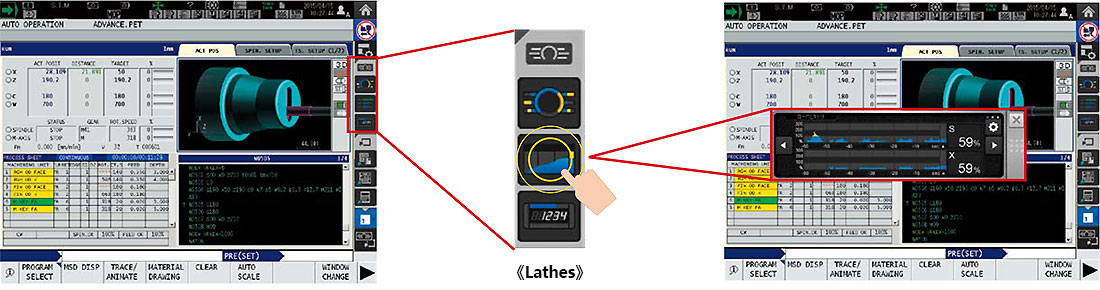

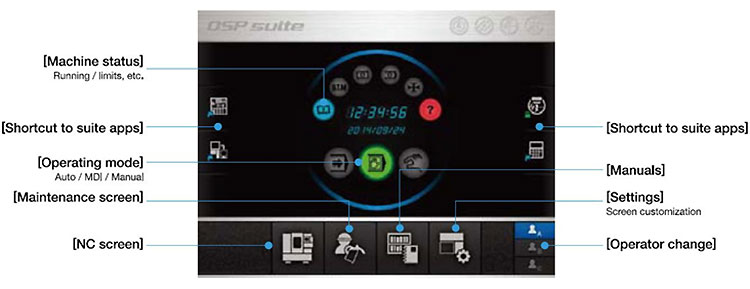

suite operation
A highly reliable touch panel suited to shop floors is used. Suite apps can be started by touching a function key icon on the right side of the screen. They are then displayed in a pop-up window. The icon layout is customizable. Suite apps can be accessed with one touch according to the desired phase of operation.
Accuracy ensured, cooler off

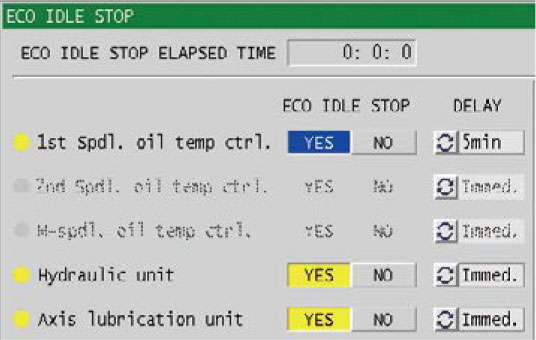

ECO Idling Stop
Intelligent energy-saving function with the Thermo-Friendly Concept.
The machine itself determines whether or not cooling is needed and cooler idling is stopped with no loss to accuracy (Standard application on machines with Thermo-Active Stabilizer-Spindle)
● Example of equipment that can use Idling Stop
On-the-spot check of energy savings
ECO Power Monitor
Power is shown individually for spindle, feed axes, and auxiliaries on the OSP operation screen.
The energy-saving benefits from auxi liary equipment stopped with ECO Idling Stop can be confirmed on the spot.

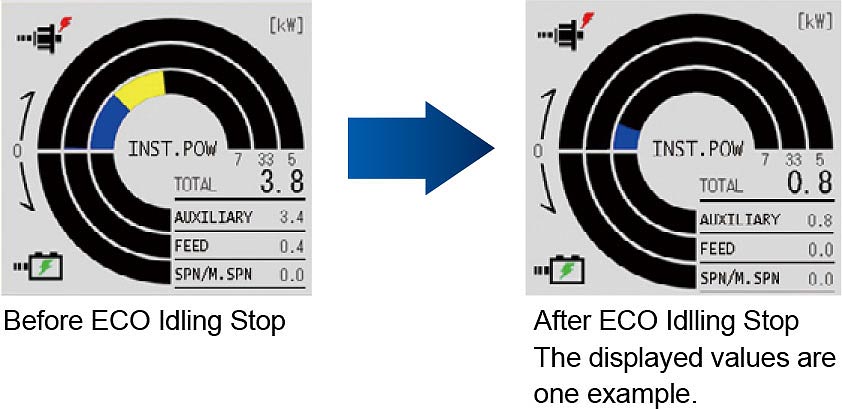

● Example of Power Monitor check
