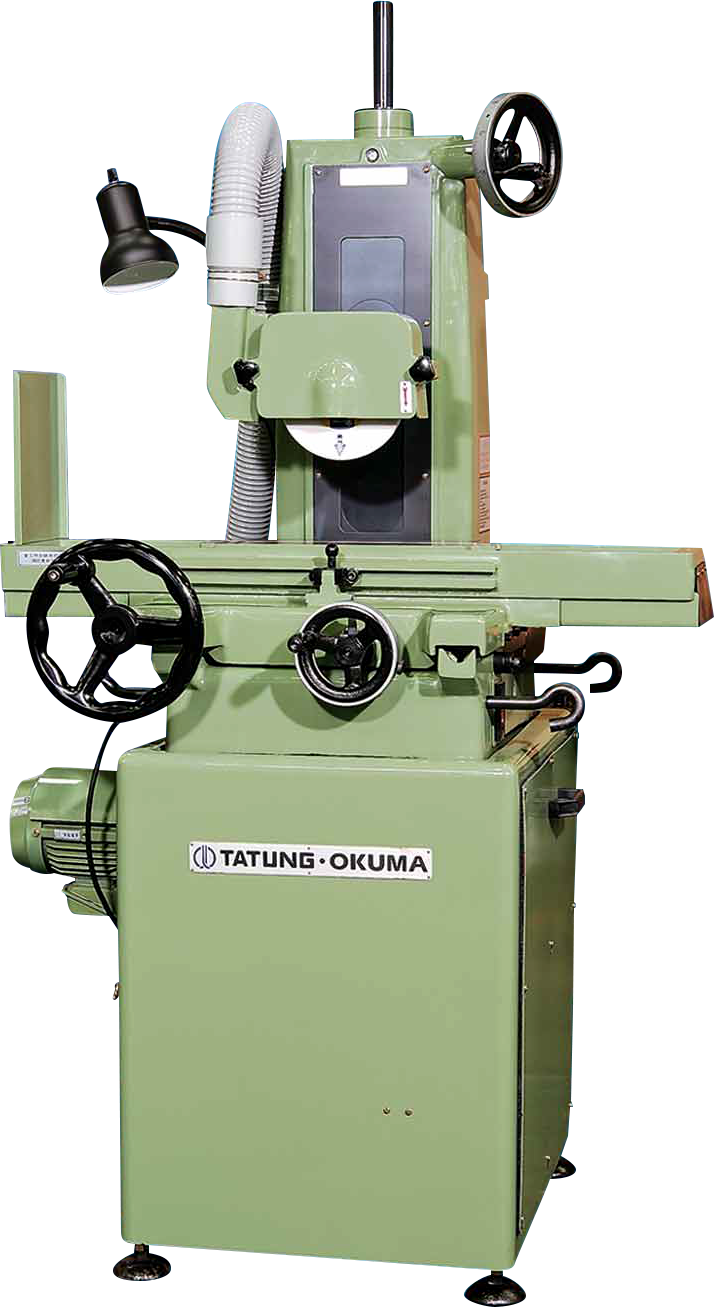

【Surface Grinder】
Slide Rail of Working Stand
Slide rail of saddle is V and flat type design, and with (TEFLON) flap, those makes movement of working stand light and fast to ensure accuracy.
Working Height
The distance from surface to center of grinding wheel shaft is 385 mm, can use large fixture and trimmer.
Complete Accessories
Proper for various grinding operation, and fulfill mechanical functions completely.
Auto Lubrication System
Adapts electromagnetic pump to control continuous circulation of lubricant in order to lubricate all slide rails,up-and-down as well as back-and-forth screw.
Spindle with Cartridge Type
Use super precision (P4) grade of roller / ball bearing, end of bearing is placed under 3µ grease lubrication to secure long life, and it simple and easy to replace spindle.
Left-and-Right Driving System
Driven by special wire rope, its movement is light and fast, accurate and no vibration occurred.
Economical Dust Collecting System
Integrate with main machine, can save space.
Compact and Vertical Pillar
Adapts H type construction, high intensity, wide span of slide rail, spindle is vibration-free to assure accuracy of finished product during processing.
