【Vertical Machining Centers】
Basic structure

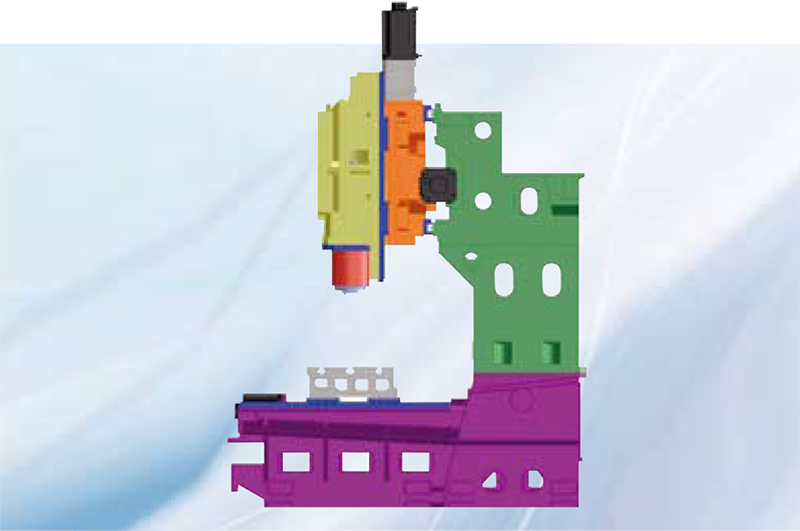

Highly rigid double-column construction

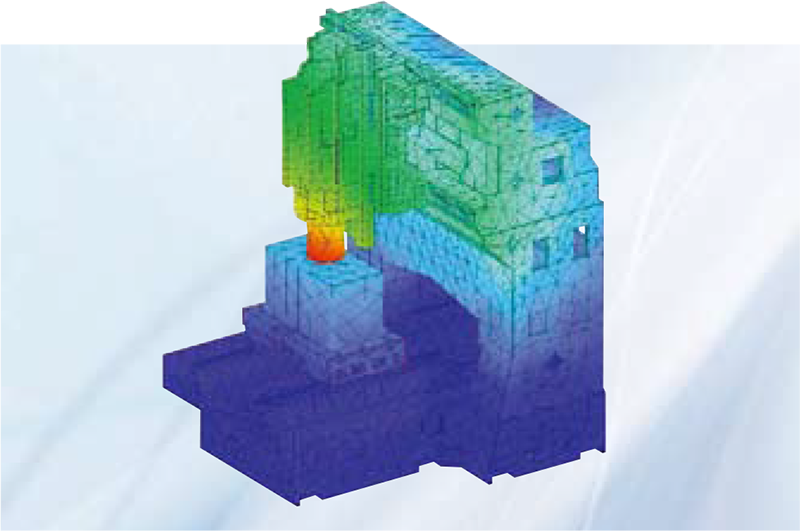

- Highly rigid construction using 3D-CAD and FEM analysis
- Small overhang to slideways means better, more efficient cutting

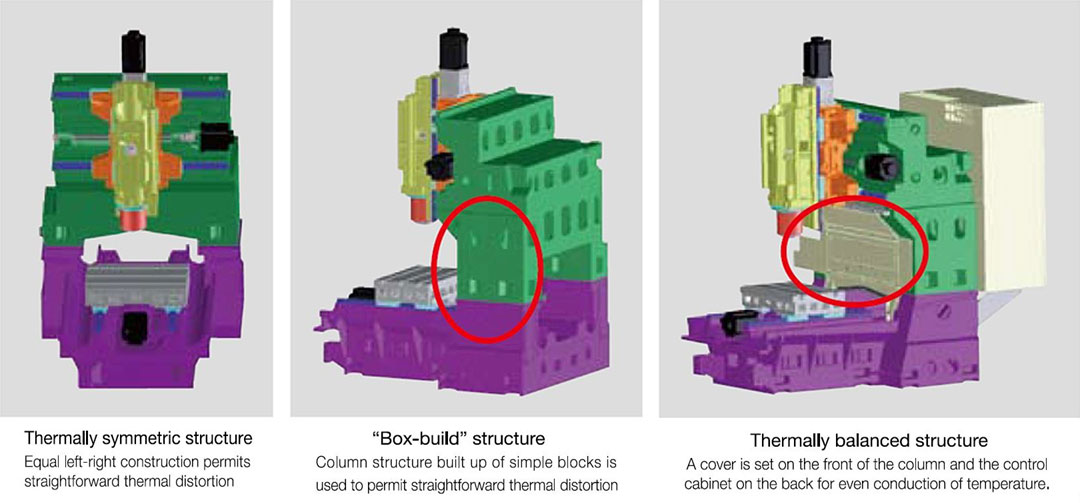

Thermo-Friendly Construction(TFC)

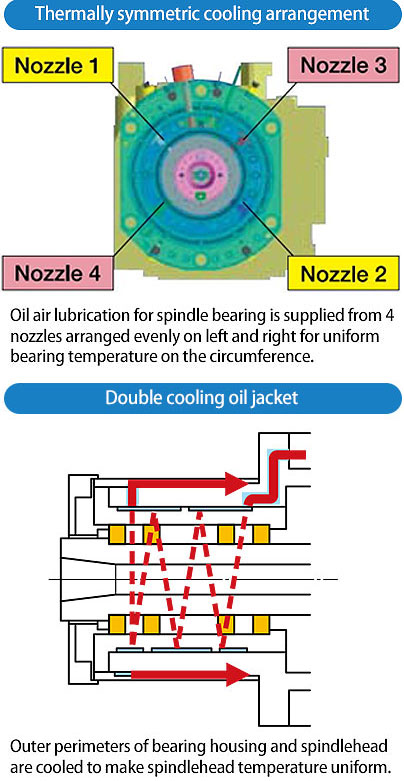

Measures to deal with heat in spindle bearing

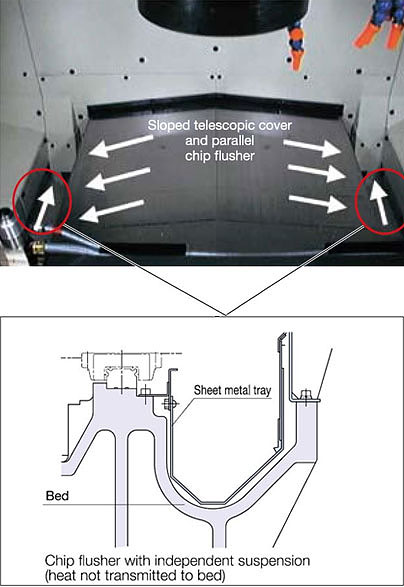

Insulation measures from coolant, chips
Chips with heat produced by machining are quickly removed before heat is transferred to machine.

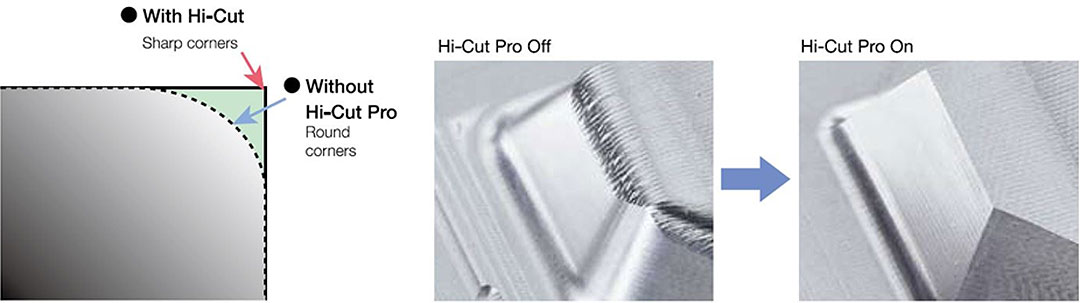

Hi-Cut Pro (standard)
A speed and acceleration controller to make sharper comers and smoother arcs-ideal for the extra accurate and quicker cycle time jobs

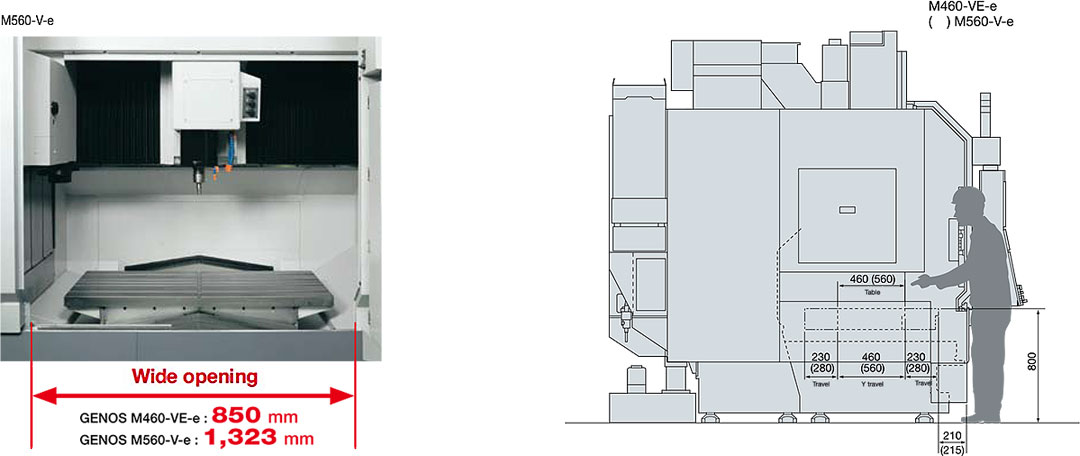

Ideal table height and workpiece access-easy setup changes
Outstanding ease of use
- Large door opening： 850 mm (1,323 mm)
- Approach to table： 210 mm (215 mm)
- Table height ： 800 mm
