3 Axis(X/Z/C) CNC Lathe Series
Related Products

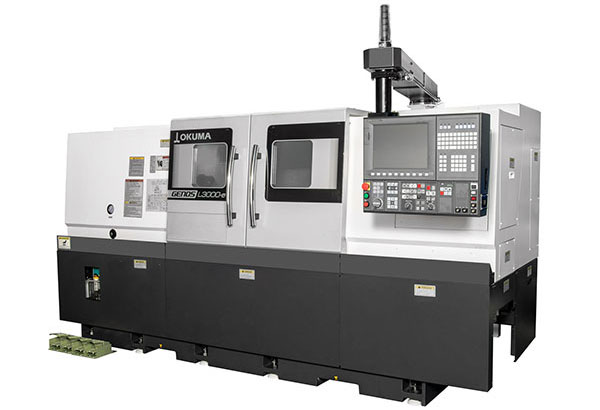

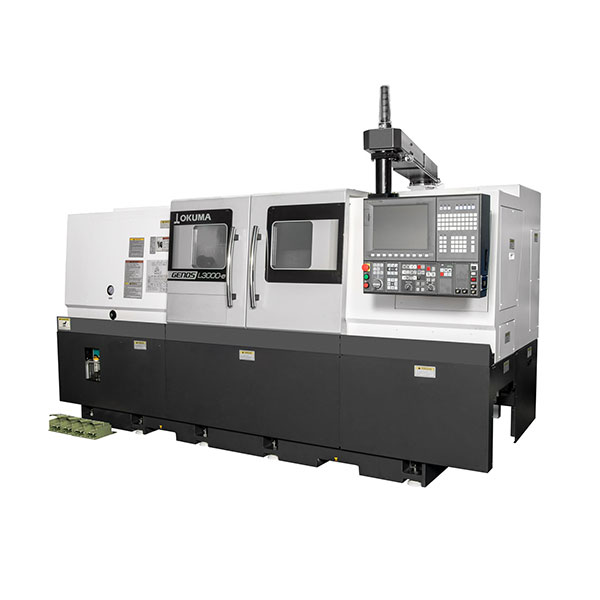

GENOS L3000-e(Mx1000)
Specifications
| Spec extension | Model name | GENOS L3000-e(Mx1000) |
|
Capacity
|
Max turning dia ( mm ) | Ø300 |
| Max work length ( mm ) | 1,060 | |
|
Travels
|
X axis (mm) | 235 |
| Z axis (mm) | 1,144 | |
| C axis | 360° ( 0.001° increments) | |
|
Spindle
|
Spindle speed ( min-1 ) | 3,800 |
| Spindle nose | JIS A2-8 | |
|
Turret
|
Turret type | V12 VDI (Axial) |
| No. of tools | 12 (L/M) | |
| OD tool shank (mm) | 25×25 | |
| ID tool shank dia (mm) | Ø40 | |
| Milling tool | Spindle speed min-1 (rpm) | 4,500 |
|
Feedrates
|
Rapid traverse(X, Z ) m/min | X:25,Z:30 |
| Rapid traverse(C) min-1(rpm) | C：200 | |
| Feedrate(X,Z) mm/rev | 0.001~1,000.000 | |
|
Tailstock
|
Tailstock quill diameter (mm) | Ø90 |
| Tapered bore type | MT.4 (built-in center) | |
| Quill travel (mm) | 100 | |
|
Motors
|
Main spindle(20min/cont) (kW) | VAC 22/15 |
| Milling tool spindle (kW) | PREX 7.0/3.3 (30min／cont) | |
| Coolant pump motor (kW) | 0.8 | |
|
Machine size
|
Height (mm) | 2,060 |
| Floor space (mm) | 3,537×2,470 | |
| Weight (kg) | 6,600 | |
| CNC | OSP-P300LA-e |
Link to: GENOS L2000-e(Mx380)

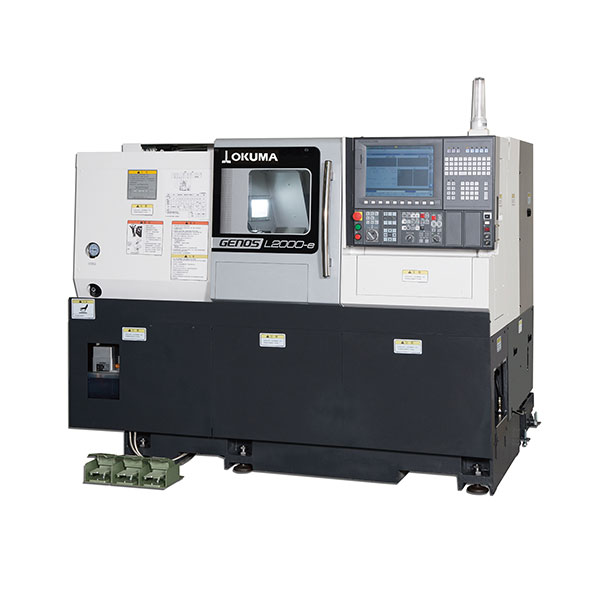

GENOS L2000-e(Mx380)
Max turning dia (mm) ：Ø200
Max work length (mm) ：380
Link to: GENOS L3000-e(Mx450)

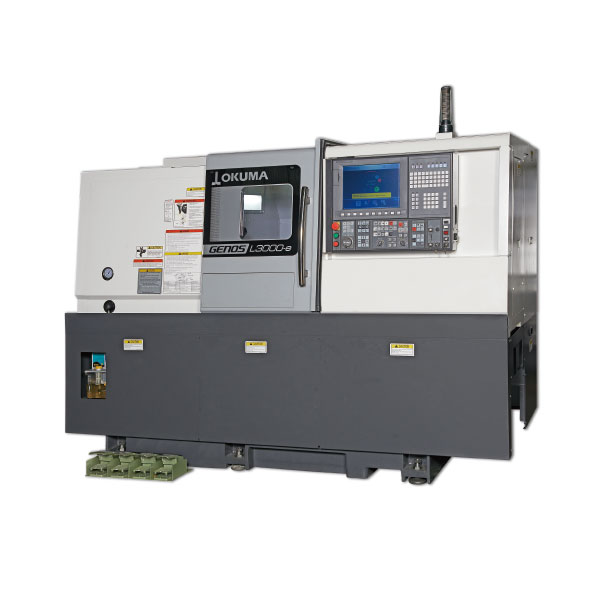

GENOS L3000-e(Mx450)
