2 Axis(X/Z) CNC Lathe Series

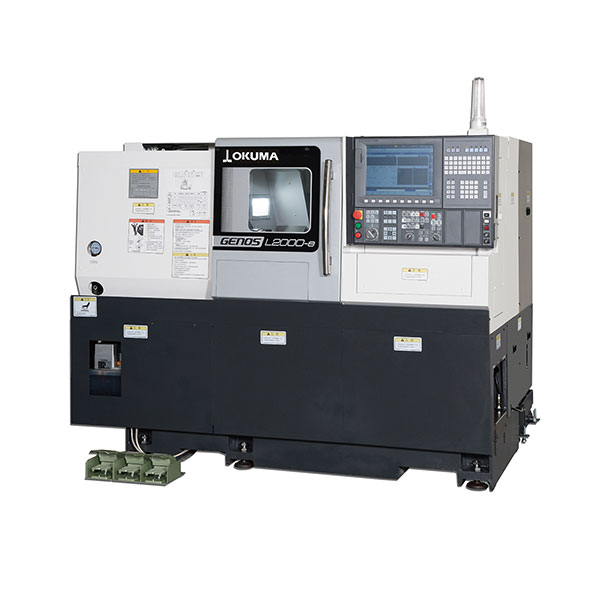

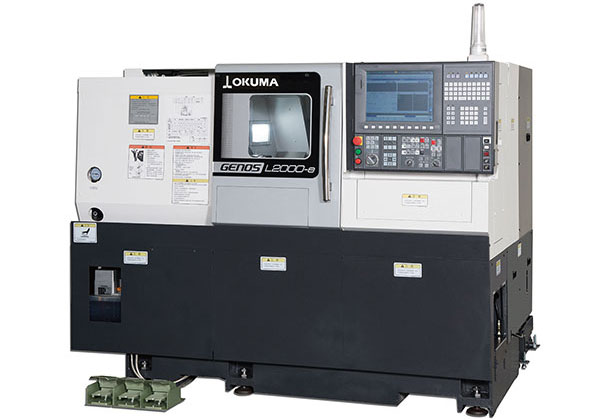

GENOS L2000-e(Lx500)
Features Contact Us
Specifications
| Spec extension | Model name | GENOS L2000-e(Lx500) |
| Capacity | Max turning dia ( mm ) | Ø280 |
| Max work length ( mm ) | 500 | |
| Travels | X axis (mm) | 165 |
| Z axis (mm) | 520 | |
| Spindle | Spindle speed ( min-1 ) | 5,000 |
| Spindle nose | JIS A2-6 | |
| Turret | Turret type | V8 |
| No. of tools | 8 | |
| OD tool shank (mm) | 25×25 | |
| ID tool shank dia (mm) | Ø40 | |
| Feedrates | Spindle speed min-1(rpm) | X:25 , Z:35 |
| Speed range | 0.001~1,000.000 | |
| Motors | Main spindle(20min/cont) (kW) | VAC15/11 |
| Coolant pump motor (kW) | 0.8 | |
| Machine size | Height (mm) | 1,620 |
| Floor space (mm) | 2,074×1,831 | |
| Weight (kg) | 3,700 | |
| CNC | OSP-P300LA-e |
- Related Products

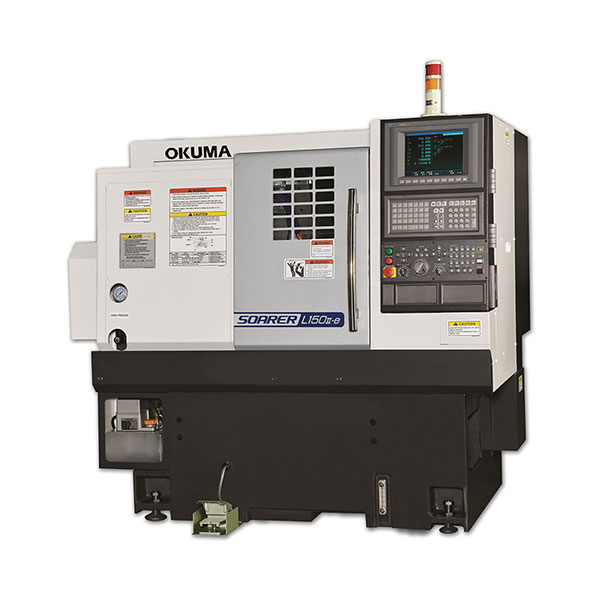

SOARER L150G-II-e
Max turning dia (mm) ：Ø140
Max work length (mm) ：150
SOARER L150T-II-e
Max turning dia (mm) ：Ø140
Max work length (mm) ：150

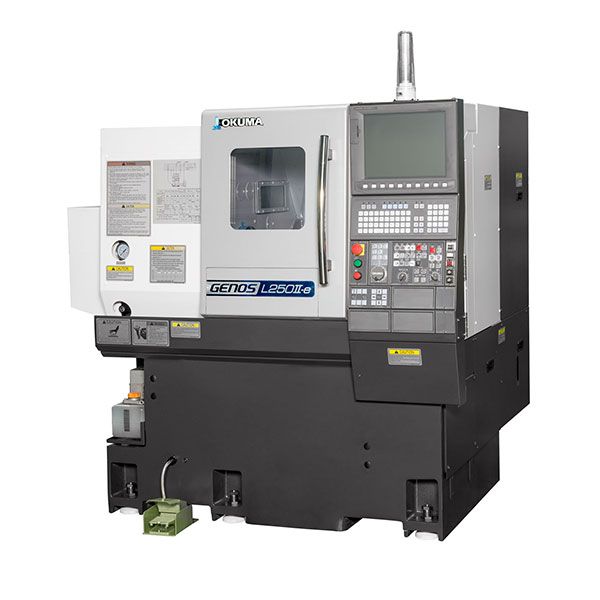

GENOS L250II-e(Lx290)
Max turning dia (mm) ：Ø280
Max work length (mm) ：290

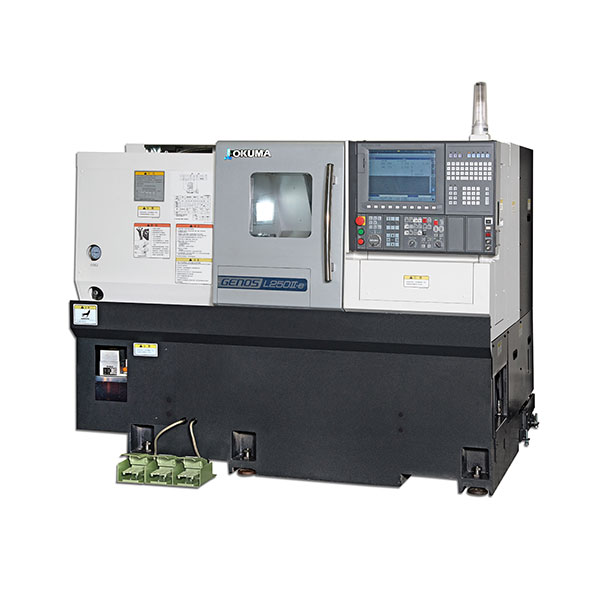

GENOS L250II-e(Lx500)
Max turning dia (mm) ：Ø280
Max work length (mm) ：500

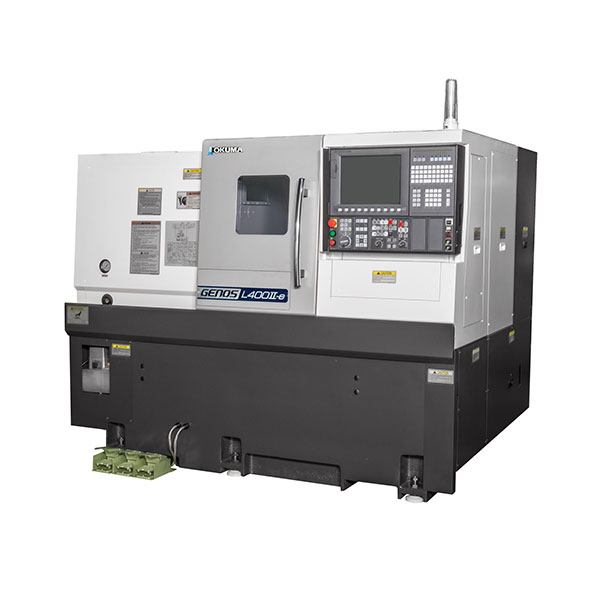

GENOS L400II-e(Lx500)
Max turning dia (mm) ：Ø390
Max work length (mm) ：500

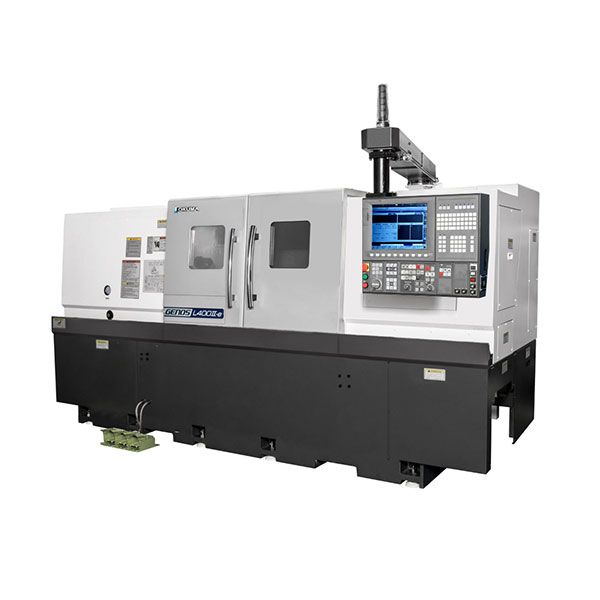

GENOS L400II-e(Lx1100)
Max turning dia (mm) ：Ø410
Max work length (mm) ：1100

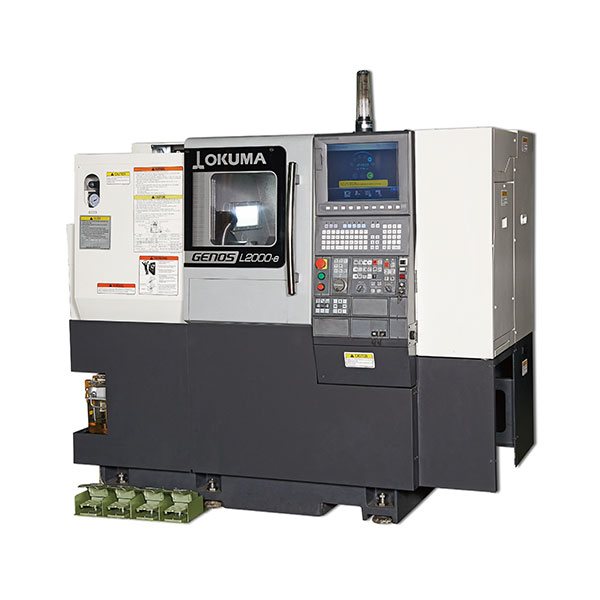

GENOS L2000-e(Lx290)
Max turning dia (mm) ：Ø280
Max work length (mm) ：290
GENOS L2000-e(Lx500)
Max turning dia (mm) ：Ø280
Max work length (mm) ：500

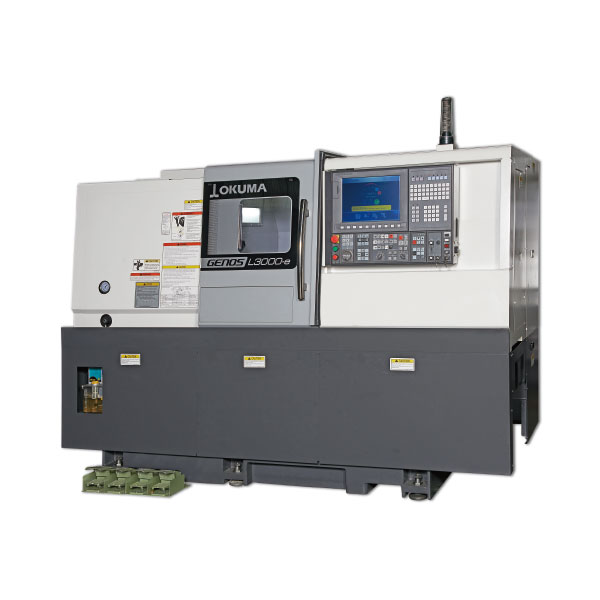

GENOS L3000-e(Lx500)
Max turning dia (mm) ：Ø390
Max work length (mm) ：500

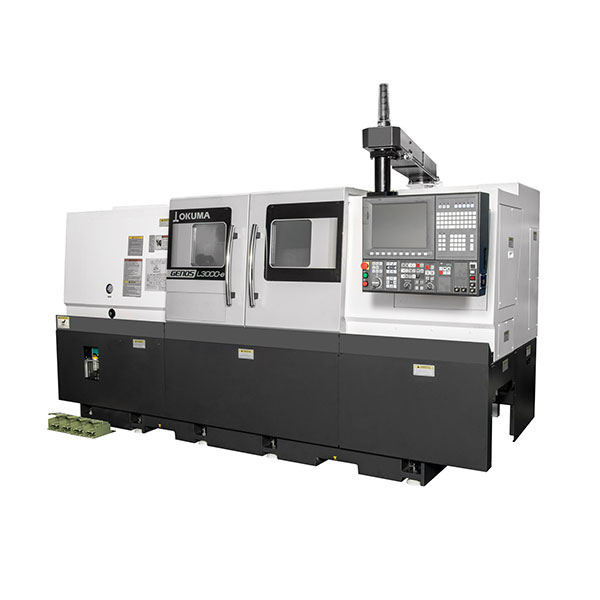

GENOS L3000-e(Lx1100)
