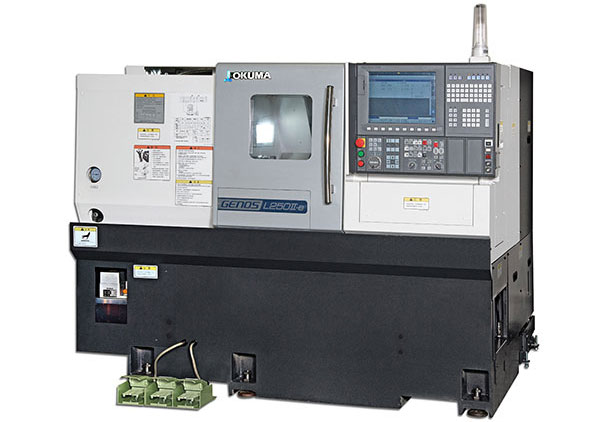

GENOS L250II-e(Lx500)
Specifications
| Spec extension | Model name | GENOS L250II-e(Lx500) |
|
Capacity
|
Max turning dia ( mm ) | Ø280 |
| Max work length ( mm ) | 500 | |
|
Travels
|
X axis (mm) | 160 ( 140+20 ) |
| Z axis (mm) | 520 | |
|
Spindle
|
Spindle speed ( min-1 ) | 4,500 |
| Spindle nose | JIS A2-6 | |
|
Turret
|
Turret type | NC V8 |
| No. of tools | 8 | |
| OD tool shank (mm) | 25×25 | |
| ID tool shank dia (mm) | Ø40 | |
|
Feedrates
|
Spindle speed min-1(rpm) | X:25 , Z:30 |
| Speed range | 0.001~1,000.000 | |
|
Tailstock
|
Tailstock quill diameter (mm) | Ø90 |
| Tapered bore type | MT.5 (revolving center) | |
| Quill travel (mm) | 100 | |
|
Motors
|
Main spindle(30min/cont) (kW) | VAC11/7.5 |
| Coolant pump motor (kW) | 0.8 | |
|
Machine size
|
Height (mm) | 1,619 |
| Floor space (mm) | 2,076×1,832 | |
| Weight (kg) | 3,800 | |
| CNC | OSP-P300LA-e |
